Link animal ID

Link animal ID

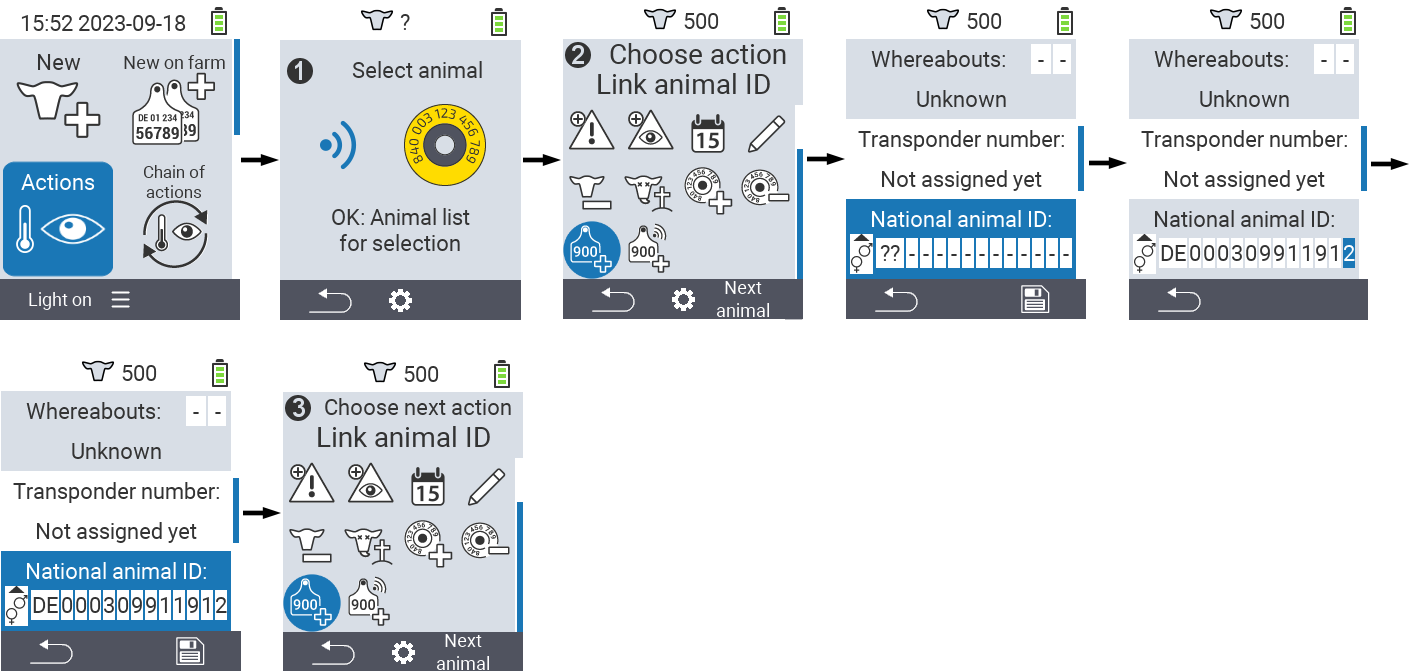

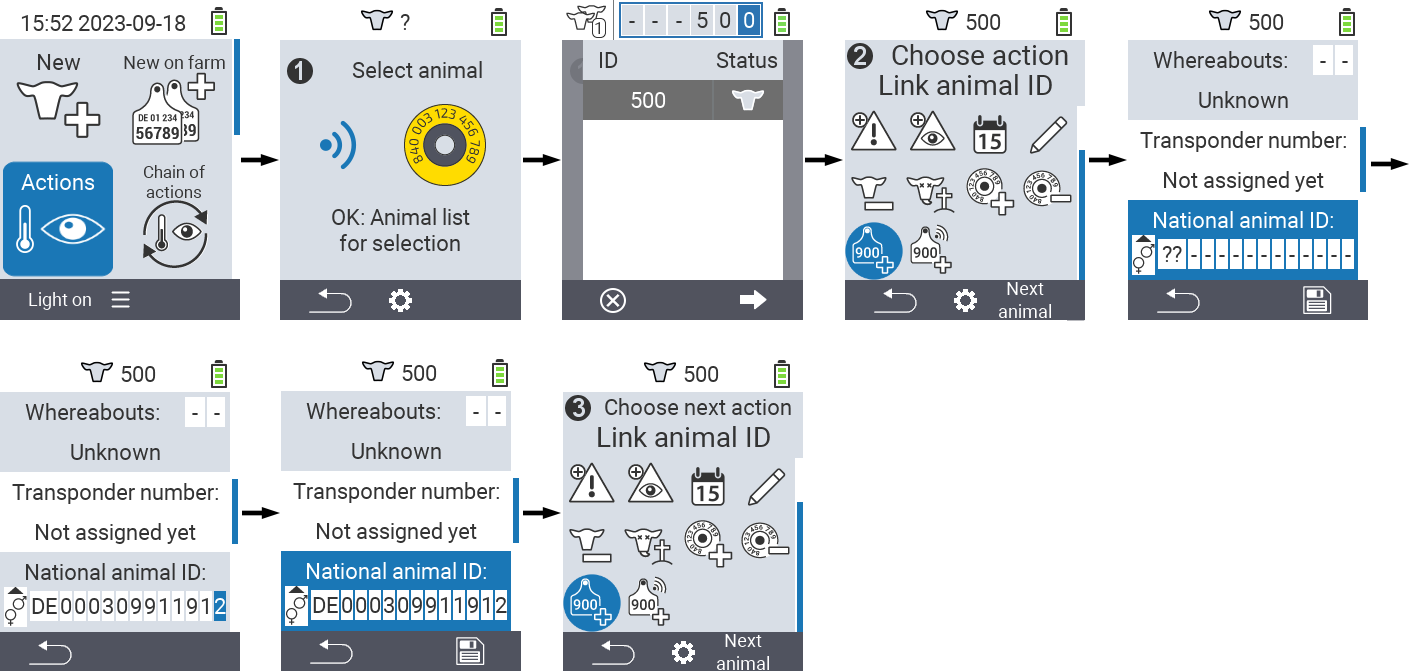

To assign a national animal ID to an animal that does not have a national animal ID, proceed as follows:

1. On the main screen of your VitalControl device, select the menu item   Actions and press the OK button.

2. Either scan the transponder of the animal without the national animal ID or select the animal from the list. To do this, confirm with OK and select the animal ID using the arrow keys △ ▽. Confirm with OK.

3. A submenu with the animal actions opens. Use the arrow keys ◁ ▷ △ ▽ to select the action   Link animal ID and confirm with OK.

4. Another submenu opens with all the setting options for the animal data. The setting option National animal ID is automatically selected. Confirm with OK.

5. Use the arrow keys ◁ ▷ △ ▽ to set the national animal ID. Confirm again with OK.

6. Save the settings and return to the main menu   Actions using the F3 key.

• Link animal ID:
• Transponder scan
• Manual selection from list

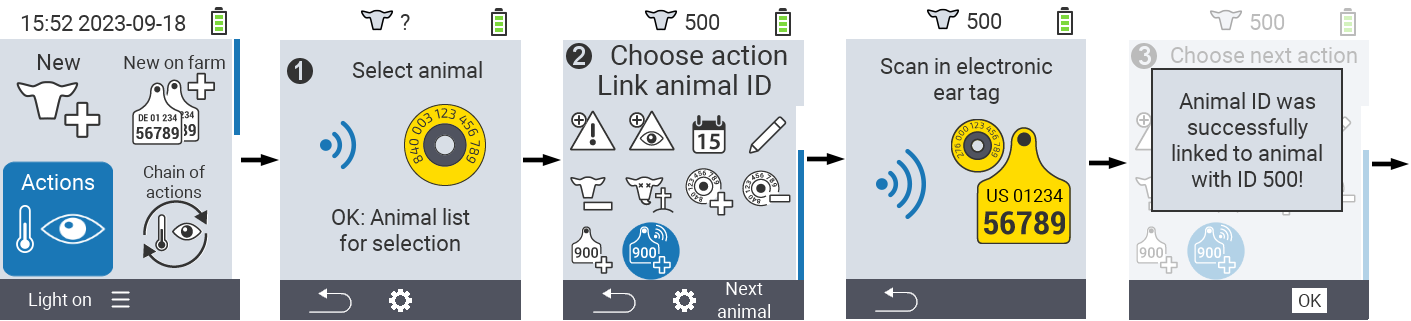

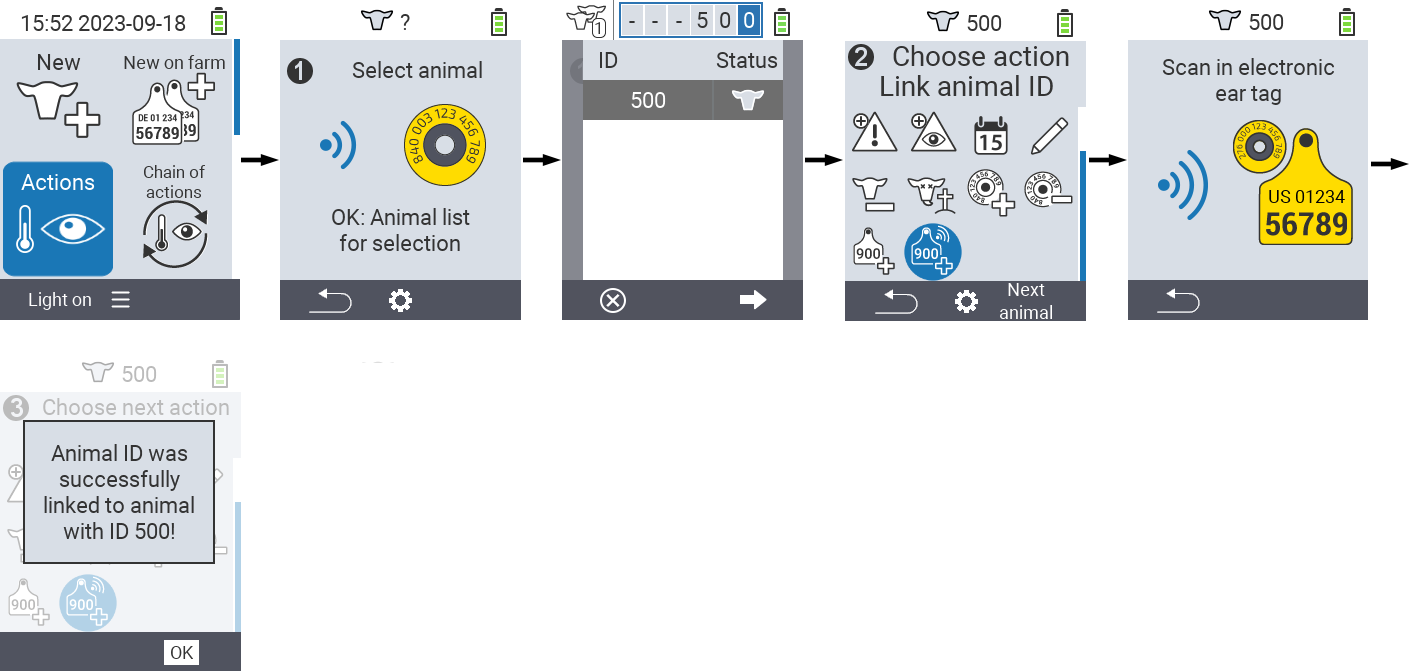

Link animal ID with electronic ear tag scan

To assign a national animal ID to an animal that has an electronic ear tag, proceed as follows:

1. On the main screen of your VitalControl device, select the menu item   Actions and press the OK button.

2. Either scan the transponder of the animal without the national animal ID or select the animal from the list. To do this, confirm with OK and select the animal ID using the arrow keys △ ▽. Confirm with OK.

3. A submenu with the animal actions opens. Use the arrow keys ◁ ▷ △ ▽ to select the action   Link animal ID and confirm with OK.

4. Now scan the electronic ear tag.

5. The animal has been successfully assigned an national animal ID.

• Link animal ID with electronic ear tag scan:
• Transponder scan
• Manual selection from list
