Link transponder

Link transponder

With this action you can assign a transponder to an animal that hasn’t yet been assigned a transponder.

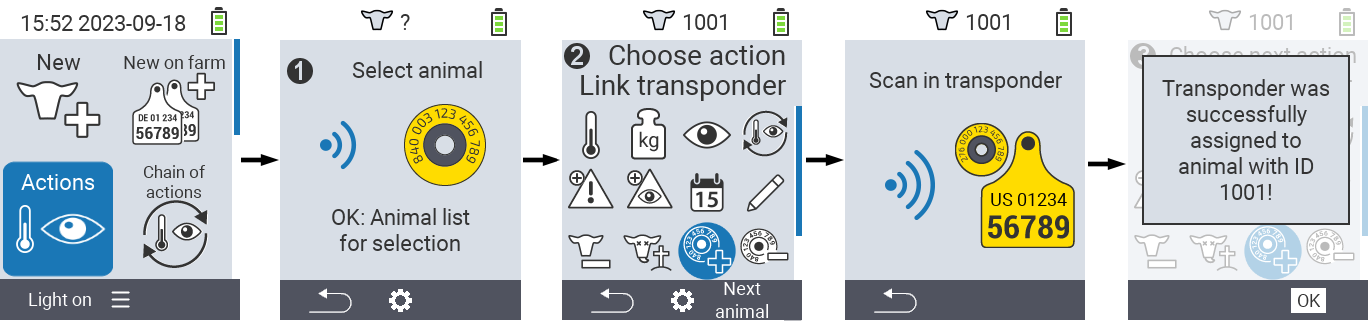

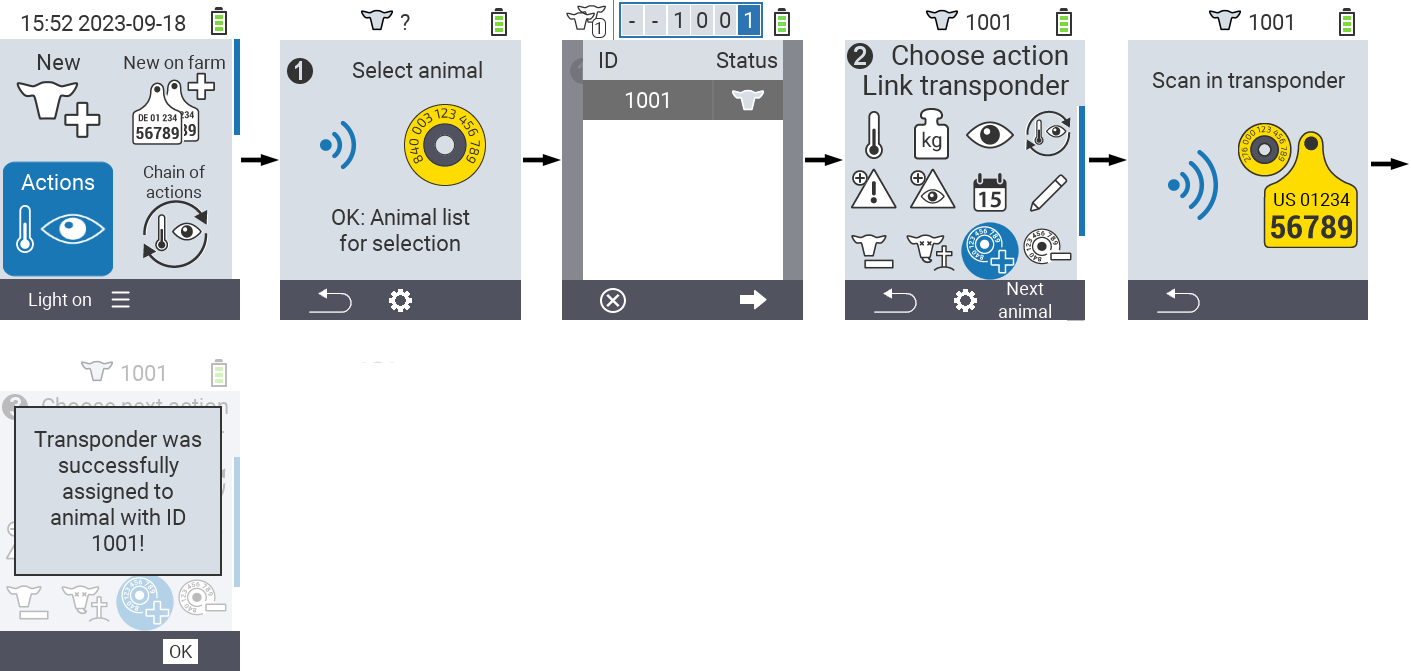

1. On the main screen of your VitalControl device, select the menu item   Actions and press the OK button.

2. Select the desired animal from the list. To do this, confirm with OK and select the animal ID using the arrow keys △ ▽. Confirm with OK.

3. A submenu with the animal actions opens. Use the arrow keys ◁ ▷ △ ▽ to select the action   Link transponder and confirm with OK.

4. Now scan the transponder that you want to assign to the animal.

5. The transponder was successfully assigned to the animal.

• Link transponder:
• Transponder scan
• Manual selection from list
