Alarm list

Alarm list

On the alarm list you will find all animals that you have either manually added to the list or all animals that were in the yellow or red range when the temperature was measured. The list helps you to keep an overview of all conspicuous animals. Also, for each animal on the list, you can do the following:

• Full action menu
• Animal data
• Take temperature
• Rate animal
• Clear alarm
• Toggle watch status
• Search animal
• Set filter

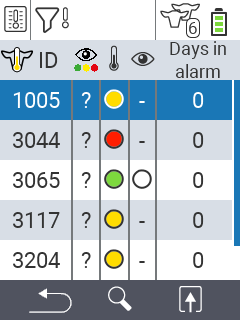

The alarm list is structured as follows:

Symbol	Description
	Shows how many animals are on the list
	Shows whether the selected animal is a calf or a cow. The clinical thermometer shows whether the animal was in the yellow or red zone at the last measurement. The animal ID is displayed below the symbol.
	The last recorded rating is shown below the symbol with the colors of the traffic light system
	The last fever measurement recorded is shown below the symbol with the colors of the traffic light system
	The circle mark below the symbol shows that the animal is on the watch list

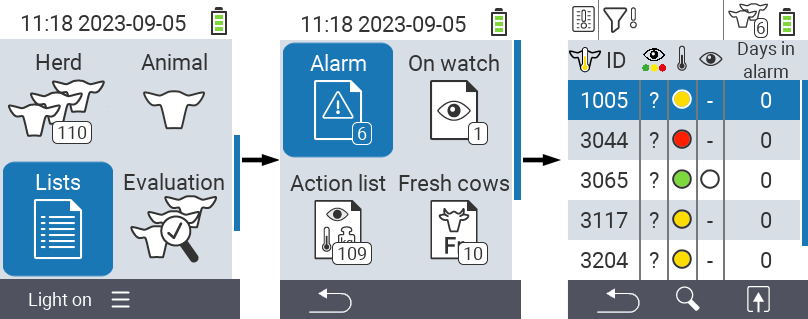

Preliminary Steps

1. Select the Lists menu item in the main screen of your VitalControl device and press the OK button.

2. A submenu opens in which various list icons are displayed. Highlight the icon Alarm and confirm with OK.

3. The alarm list is now open.

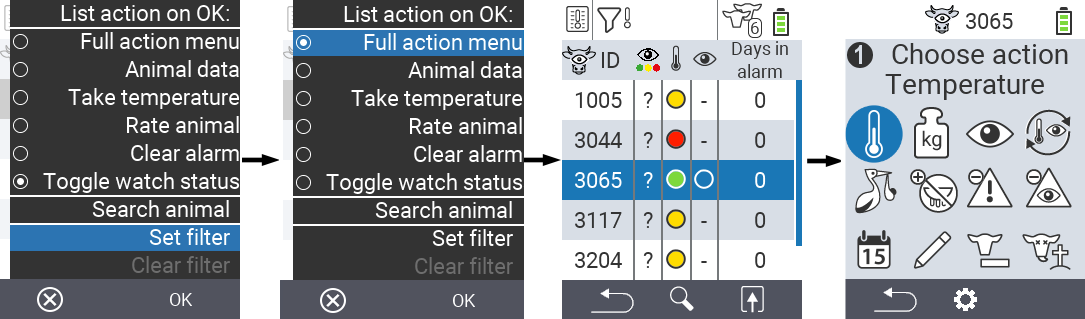

Full action menu

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists the possible actions when pressing OK key. Use the arrow keys △ ▽ to highlight the action Full action menu and select the action by pressing the central OK key or the F3 key OK.

3. Within the alarm list, use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

4. The Actions menu will open automatically. The handling of the actions can be found here.

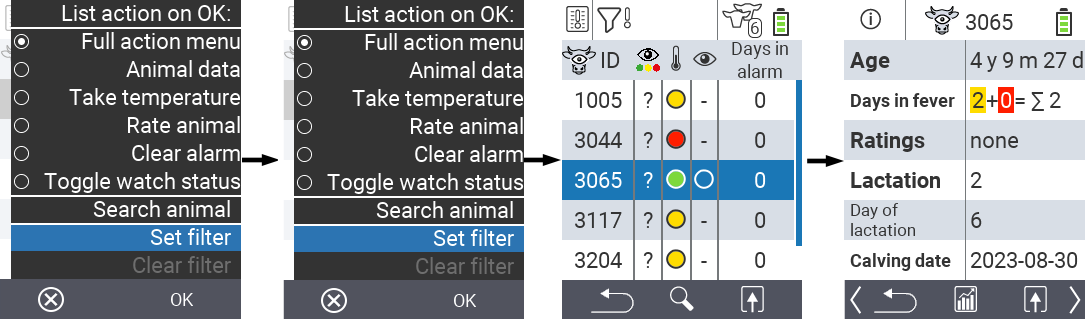

Animal data

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists the possible actions when pressing OK key. Use the arrow keys △ ▽ to highlight the action Animal data and select the action by pressing the central OK key or the F3 key OK.

3. Within the alarm list, use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

4. The animal data will now be displayed.

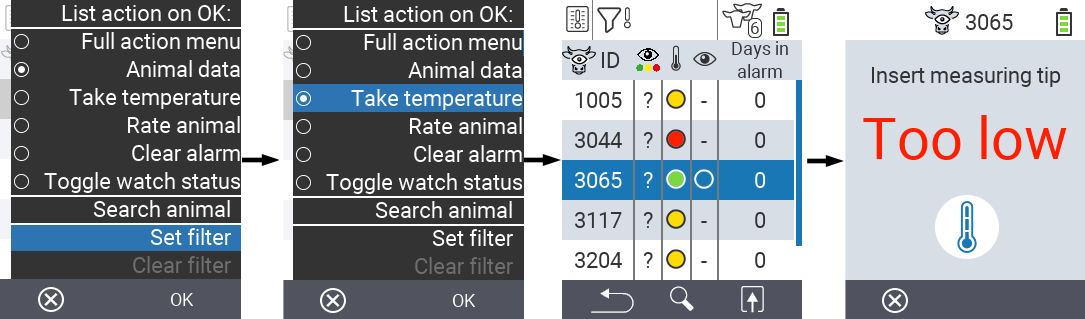

Take temperature

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists the possible actions when pressing OK key. Use the arrow keys △ ▽ to highlight the action Take temperature and select the action by pressing the central OK key or the F3 key OK.

3. Within the alarm list, use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

4. The Measure temperature function is now started automatically.

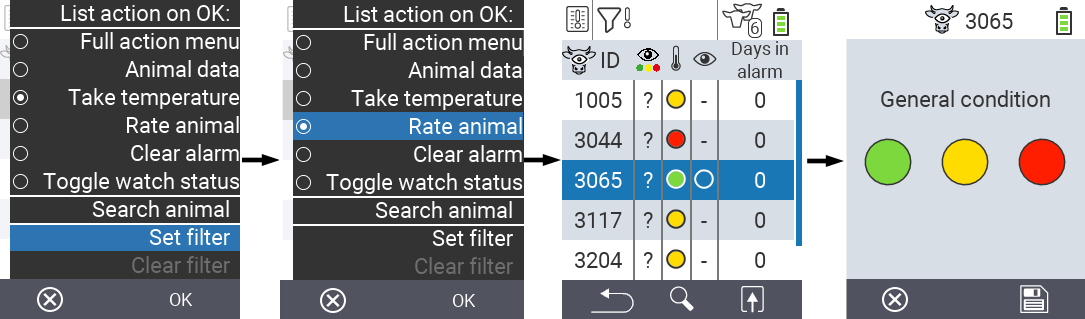

Rate animal

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists the possible actions when pressing OK key. Use the arrow keys △ ▽ to highlight the action Rate animal and select the action by pressing the central OK key or the F3 key OK.

3. Within the alarm list, use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

4. The Rate animal function is now started automatically.

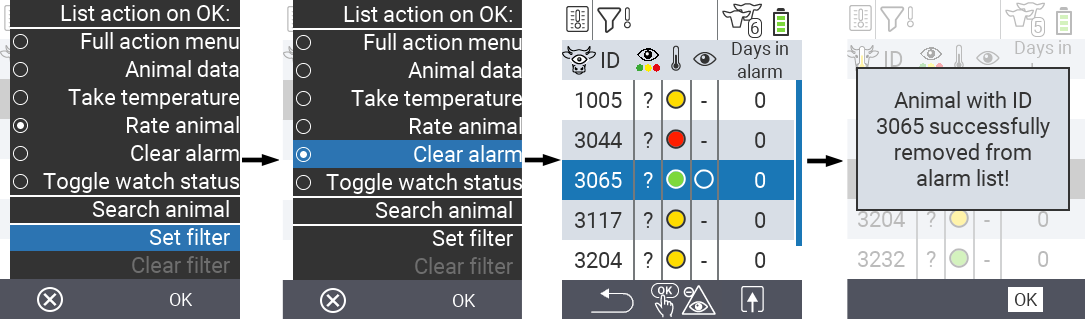

Clear alarm

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists the possible actions when pressing OK key. Use the arrow keys △ ▽ to highlight the action Clear alarm and select the action by pressing the central OK key or the F3 key OK.

3. Within the alarm list, use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

4. The animal is now removed from the alarm list.

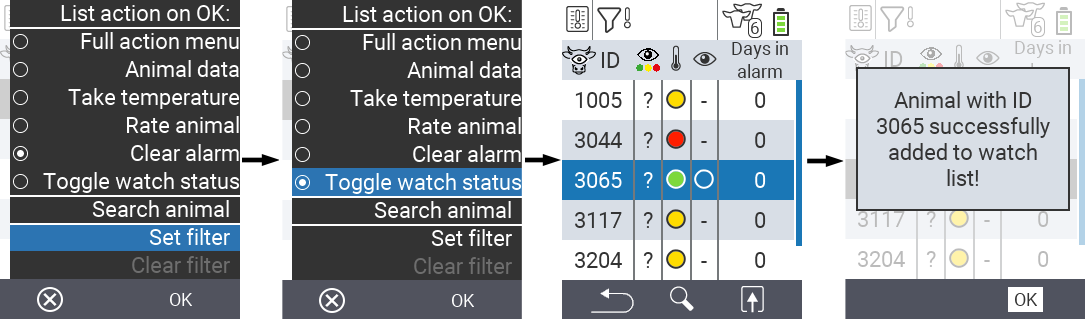

Toggle watch status

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists the possible actions when pressing OK key. Use the arrow keys △ ▽ to highlight the action Toggle watch status and select the action by pressing the central OK key or the F3 key OK.

3. Within the alarm list, use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

4. The animal is now added or removed from the watch list depending on its initial status.

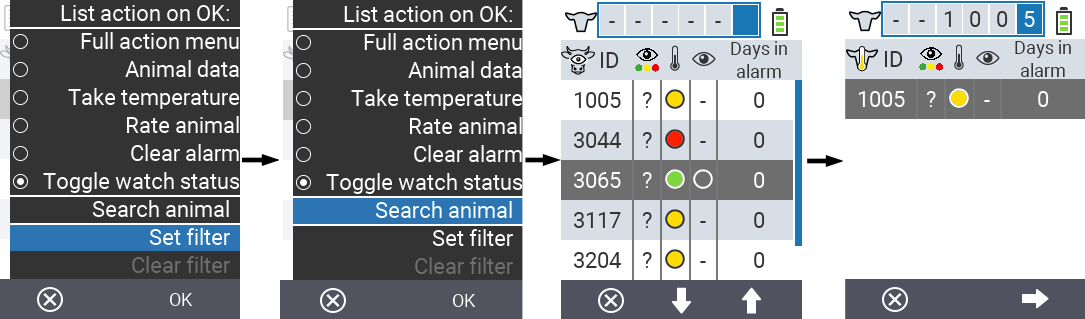

Search animal

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists various options. Use the arrow keys △ ▽ to highlight the function Search animal and invoke the search function by pressing the central OK key or the F3 key OK.

3. Use the arrow keys △ ▽ ◁ ▷ to select the desired animal ID. Alternatively, you can search for an animal. Use the On/Off button and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

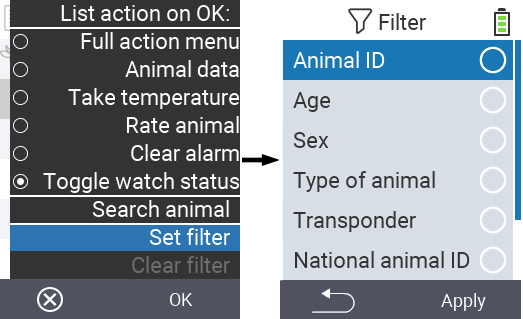

Set filter

1. Complete the preliminary steps.

2. Use the F3 key    to invoke a popup menu that lists various options. Use the arrow keys △ ▽ to highlight the function Set filter and invoke the filter function by pressing the central OK key or the F3 key OK.

3. Set the desired filter. You can find how to use the filter here.
