No national animal ID assigned

Here you can view all animals that have not yet been assigned an national animal ID and assign an national animal ID.
Categories:
Tags:

No national animal ID assigned

In this list you will find all animals that have not yet been assigned an animal ID. You can assign an animal ID to the animals in this list.

  1. In the main screen of your VitalControl device, select the menu item New on farm New on farm and press the OK button.

  2. A submenu opens in which you can choose between New on farm, no transponder New on farm, no transponder, Purchased animals Purchased animals, No national animal ID No national animal ID assigned, Births Births and No transponder assigned No transponder assigned. Use the arrow keys ◁ ▷ △ ▽ to select the menu item No national animal ID No national animal ID assigned and confirm with OK.

  3. A list opens with your animals that have not yet been assigned an national animal ID.

  4. Use the arrow keys △ ▽ to select the desired animal and confirm with OK. Alternatively, you can search for an animal. To do so, press the middle On/Off button Search and use the arrow keys ◁ ▷ △ ▽ to select the desired digits. Finally confirm with OK.

  5. A submenu opens in which you can edit all data for the animal. The menu item National animal ID is automatically selected.

  6. Confirm with OK or press the On/Off button. Use the arrow keys ◁ ▷ △ ▽ to set the desired national animal ID. Finally confirm with OK.

  7. Save the setting with the F3 key Save . The animal was successfully assigned an national animal ID and removed from the list.

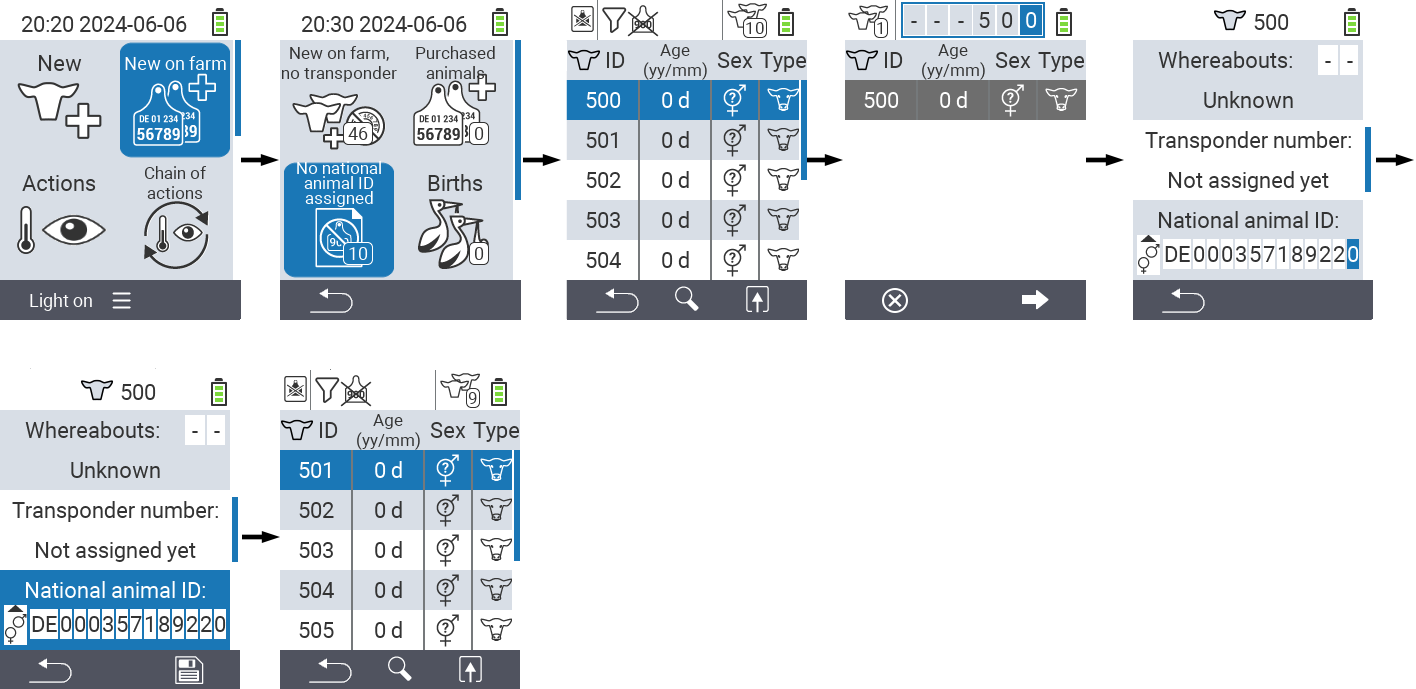

VitalControl: Menu New No national animal ID assigned

VitalControl: Menu New No national animal ID assigned

Last action on OK

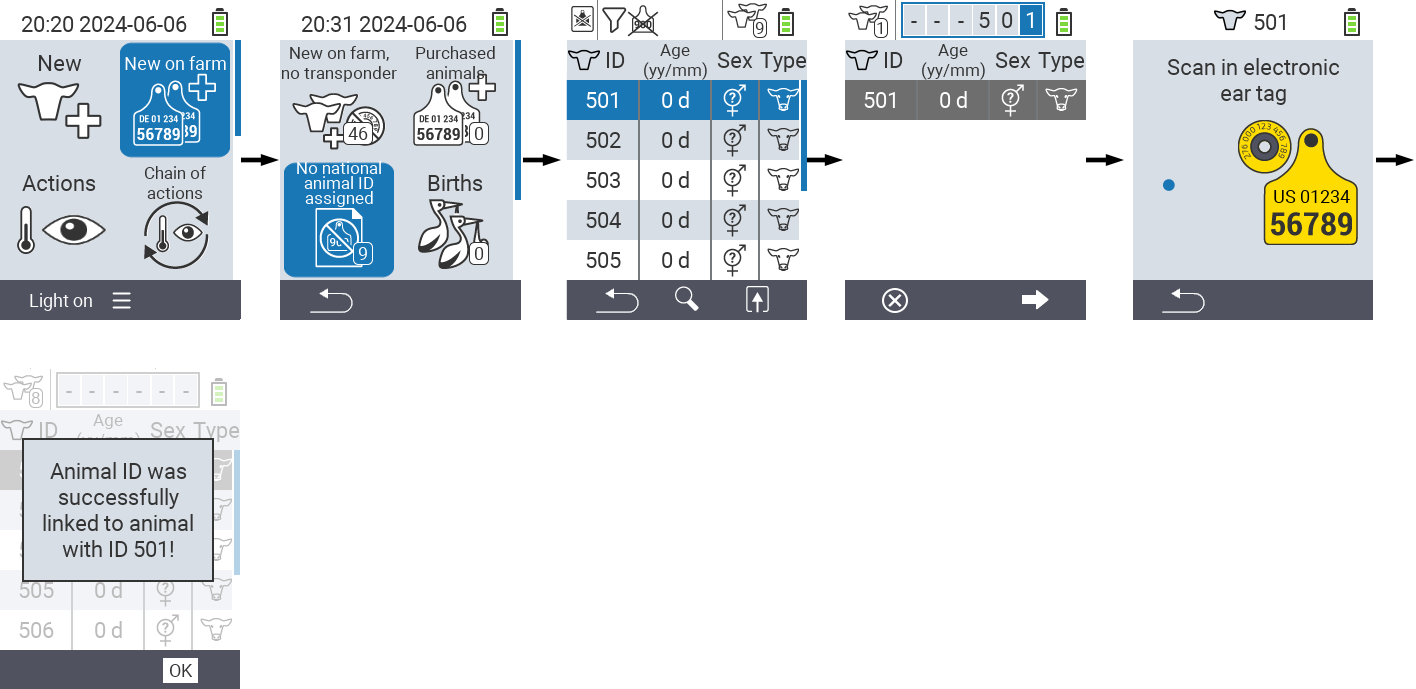

You can use the additional actions to set which actions you want to perform before assigning the national animal ID. You can choose between measuring the temperature, assessing the animal and weighing the animal. The respective action is saved directly for the animal that you subsequently assign. Proceed as follows:

  1. In the main screen of your VitalControl device, select the menu item New on farm New on farm and press the OK button.

  2. A submenu opens in which you can choose between New on farm, no transponder New on farm, no transponder, Purchased animals Purchased animals, No national animal ID No national animal ID assigned, Births Births and No transponder assigned No transponder assigned. Use the arrow keys ◁ ▷ △ ▽ to select the menu item No national animal ID No national animal ID assigned and confirm with OK.

  3. A list opens with your animals that have not yet been assigned an national animal ID.

  4. Use the key F3  Call popup  . A submenu opens in which you have various setting options. Use the arrow buttons △ ▽ to navigate to the menu item Link ID (manual) or Link ID (RFID scan). Confirm with OK. The setting you have selected is now active.

    List of purchased animals, no national animal ID assigned

Previous additional actions

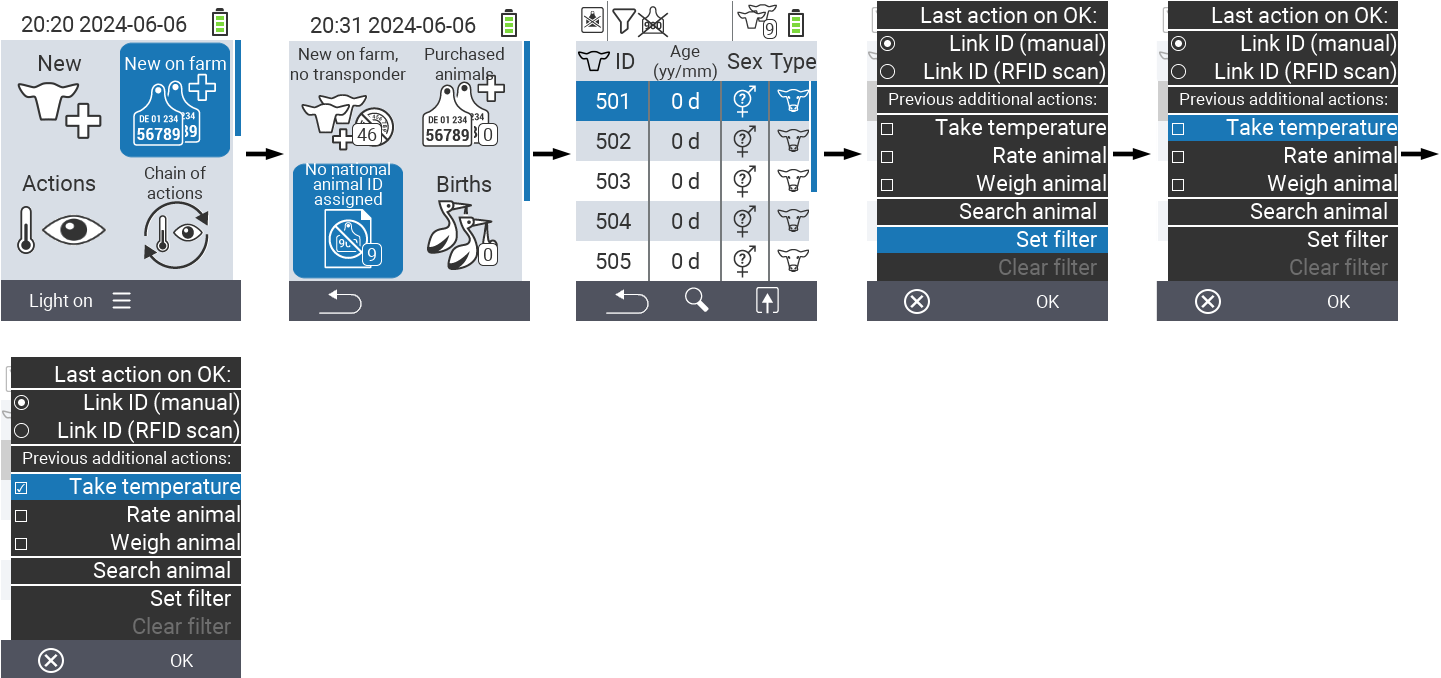

You can use the previous additional actions to set which actions you want to perform before assigning the ear tag number. You can choose between measuring the temperature, assessing the animal and weighing the animal. The respective action is saved directly for the animal that you subsequently assign. Proceed as follows:

  1. In the main screen of your VitalControl device, select the menu item New on farm New on farm and press the OK button.

  2. A submenu opens in which you can choose between New on farm, no transponder New on farm, no transponder, Purchased animals Purchased animals, No national animal ID No national animal ID assigned, Births Births and No transponder assigned No transponder assigned. Use the arrow keys ◁ ▷ △ ▽ to select the menu item No national animal ID No national animal ID assigned and confirm with OK.

  3. A list opens with your animals that have not yet been assigned an national animal ID.

  4. Use the F3 key  Call popup  to call up a popup. Use the arrow keys △ ▽ to navigate to the Previous additional actions item.

  5. Use the arrow buttons △ ▽ to select between Take temperature, Rate animal and Weigh animal. Confirm with OK to activate the checkbox. A tick appears inside the checkbox to confirm that the action is activated. Confirm again with OK to deactivate the action. You can activate any number of actions at the same time.

    List of purchased animals, no national animal ID assigned

Further menu items

You also have the option of selecting between Search animal and Set filter in the pop-up. Use the arrow buttons △ ▽ to navigate to the respective menu item and confirm with OK. The information for Set filter here and for Search animal proceed as in No national animal ID assigned step 4.
