Registration of animals

Here you can adjust several factory-set standards concerning the registration of new animals to the requirements of your farm.

Set default values

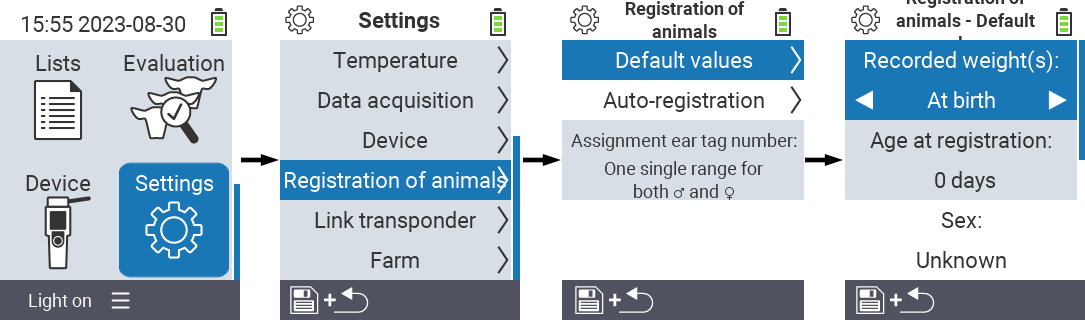

Set recorded weight(s)

Here you define which weight is recorded and saved when creating new animals on your farm. To set the recorded weight on your device, proceed as follows.

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Default values and confirm with OK.
The Recorded weight(s) area is automatically selected. Use the arrow keys ◁ ▷ to select the weight to be captured.

Hint

Select none if: the animals are created automatically in the background (via transponder scan), no scale is available in the farm and no estimated values are wanted, the birth weights are unknown.

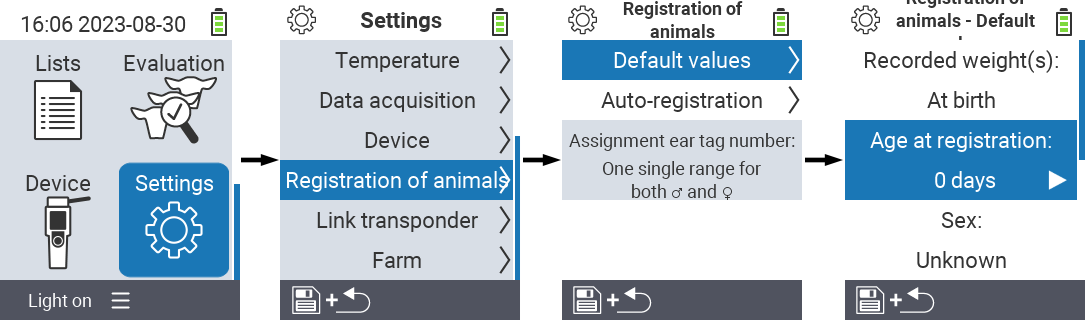

Set age at registration

Hint

Based on the age entered here, the device calculates the date of birth that is suggested for a manually created animal or that is used for automatic creation in the background (via tranponder scan). For dairy farms, enter the age in days at which newborn calves are registered in VitalControl. For feeder rearing farms, the average age of the purchased calves is to be entered here. The permissible range of values is from 0 to 99 days.

To set the age at creation on your device proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Default values and confirm with OK.
Use the arrow keys △ ▽ to select the Age (new calf/lamb).
Use the arrow keys ◁ ▷ to set the age at creation.

Set sex

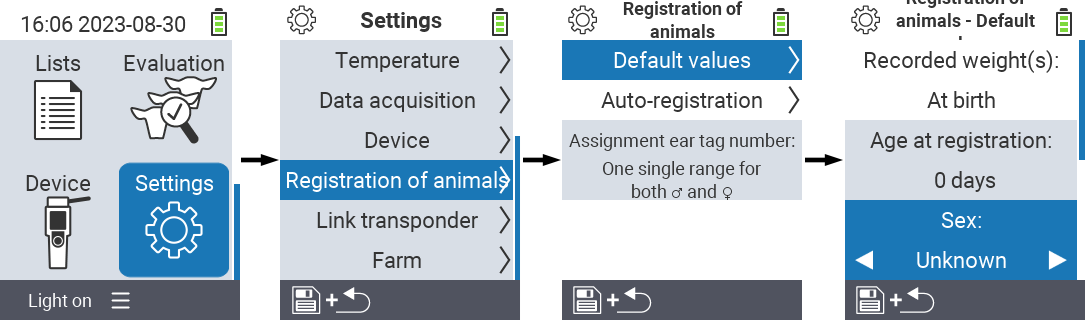

Here you define which sex is suggested (manual creation) or automatically adopted (creation in the background). To define the sex when registering an animal on your device, proceed as follows.

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Default values and confirm with OK.
Use the arrow keys △ ▽ to select the Sex.
Use the arrow keys ◁ ▷ to set the sex when creating.

Set type of animal

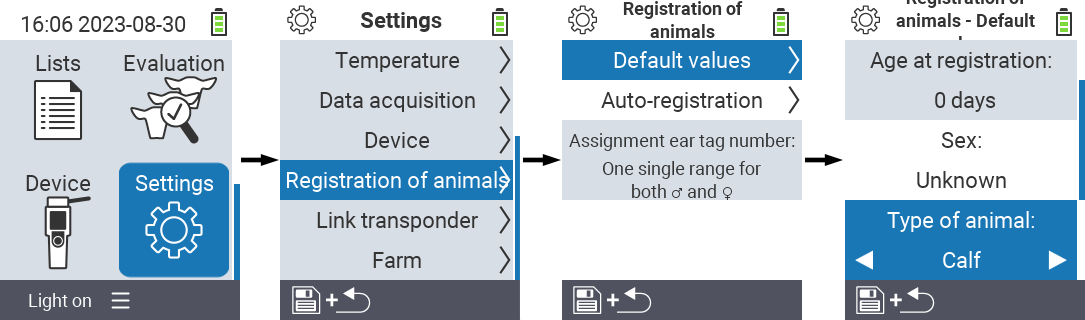

Here you define which type of animal is recorded when creating new animals in your farm. To define the type of animal when creating it on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Default values and confirm with OK.
Use the arrow keys △ ▽ to select the Type of animal.
Use the arrow keys ◁ ▷ to set the type of animal when creating.

Set breed

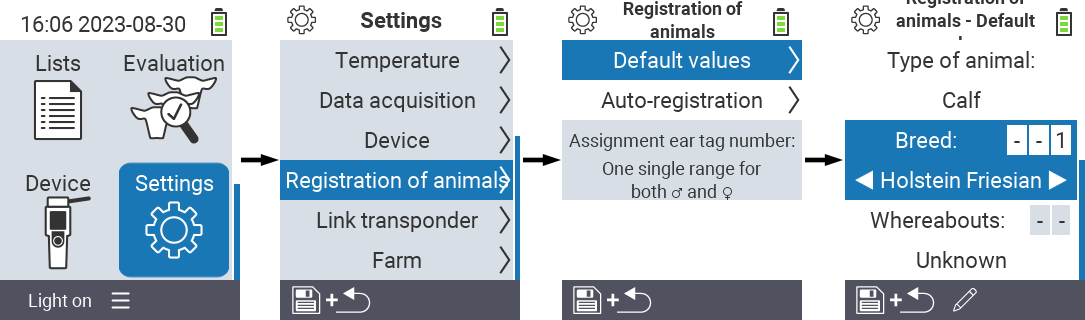

Here you define which breed of the livestock is recorded when creating new animals on your farm. To define the breed when creating on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Default values and confirm with OK.
Use the arrow keys △ ▽ to select Breed.
Use the arrow keys ◁ ▷ to set the breed when creating.

Set Whereabouts

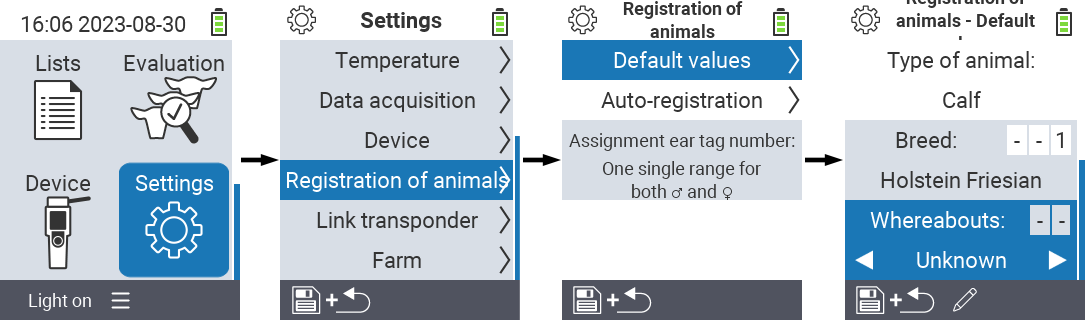

Here you define which whereabouts are assigned to the animals when creating new farm animals. To define the whereabouts of the farm animal when it is created on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Default values and confirm with OK.
Use the arrow keys △ ▽ to select Whereabouts.
Use the arrow keys ◁ ▷ to set the whereabouts when creating.

Save the settings and return to the top menu Settings by pressing the F1 key Save and return .

Auto-registration

Here you define the behavior of the device when a new transponder, which is not yet known to the VitalControl device, is scanned. For this case three different behaviors can be defined.

Hint

When the user confirms the creation of animals, an input screen appears in which the user can enter the data of the new animal to be created (gender, date of birth, etc.). With automatic creation, the values defined in “Settings > Create new animals” are used for all automatically created animals for sex, age, etc. Animal-specific settings are not possible here.

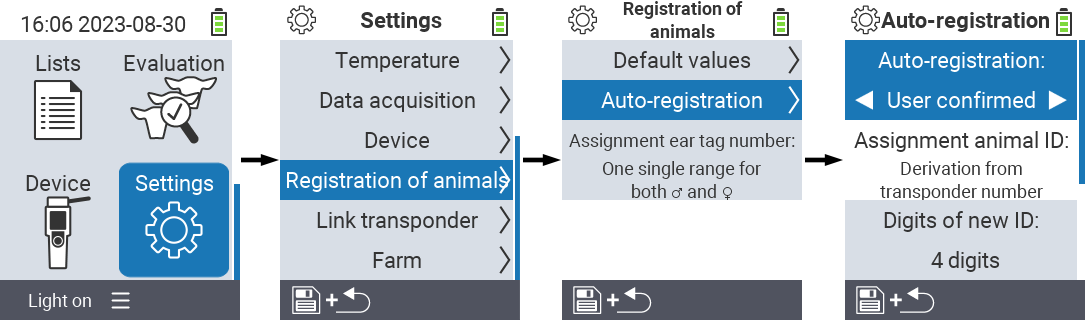

In order to define the behavior when the user animal is automatically created on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Auto-registration and confirm with OK.
The preference field Auto-registration is selected automatically. Use the arrow keys ◁ ▷ to determine the behavior of the device when creating new animals.

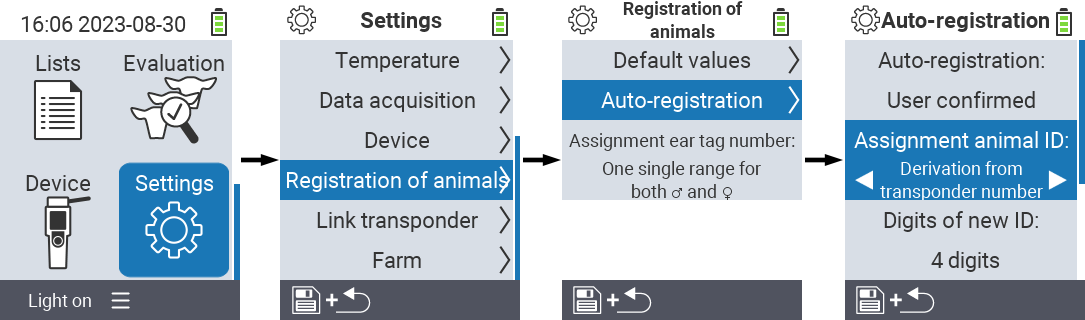

Assignment animal ID

Here you define which animal ID is proposed (derived from transponder number) or used (consecutive) when creating a new animal in your farm.

Hint

Select the “Consecutive” option if the stall number you use for visual identification of the animal is assigned independently of the transponder number used for electronic identification. The stall or collar numbers are then assigned consecutively within a certain range (e.g. 1 - 40) and are then not directly related to the transponder numbers used. Select the option “Derive from transponder number” if you want to link the animal’s stall number directly to the number of the transponder that was assigned to the animal. This option is especially useful if you use yellow electronic ear tags, the barn number is then identical to the end digits of the ten-digit animal number printed on the yellow ear tag.

To define the assignment of the animal ID when creating the farm animal on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Auto-registration and confirm with OK.
Use the arrow keys △ ▽ to select Assignment animal ID.
Use the arrow keys ◁ ▷ to set the assignment of the animal ID of the working animal when creating.

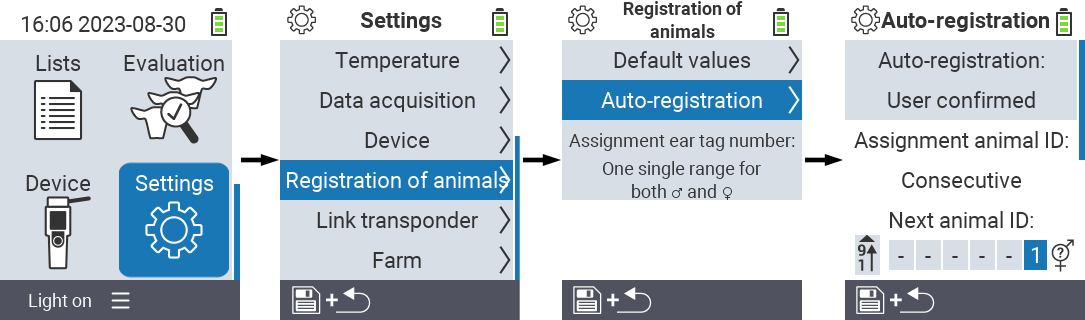

If you select the setting Consecutive, you have the option of specifying the Next animal ID. Use the arrow keys △ ▽ to select the Next animal ID area and confirm with OK. Navigate within the area using the arrow keys ◁ ▷. Now you can select a number using the arrow keys △ ▽. The device will now automatically use this number to start the continuous count from there. Furthermore, you can set whether the numbers are to be counted continuously increasing or continuously decreasing. To do this, use the arrow keys ◁ ▷ to go to the 9/1 symbol. Use the arrow keys △ ▽ to toggle between counting continuously increasing or continuously decreasing. Save the settings using the F1 or OK key .

Hint

Only when using the option Consecutive: if you have set to use separate number ranges for male and female animals when assigning the ear tag number, a next animal number is stored for each of male, female and animals of unknown sex. A symbol placed to the left of the animal number indicates what the next animal number is used for: either for male ♀ or for female ♂ or for animals of unknown sex ♀♂?

Digit of the new ID

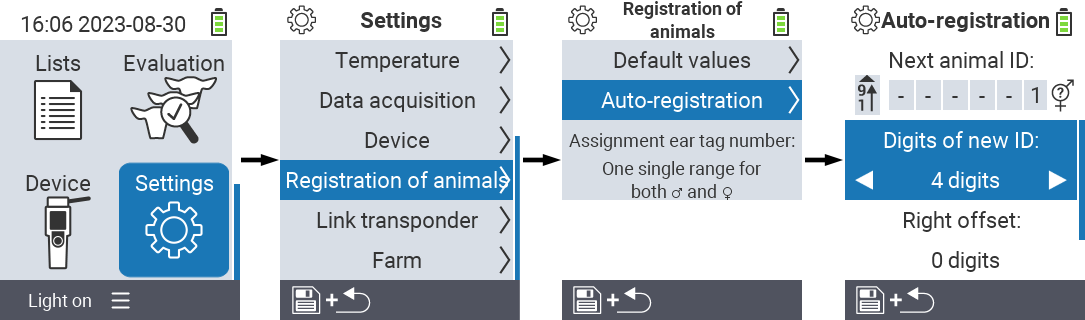

Here you define which length a barn number derived from the transponder number has for a new animal in your farm. The possible value range is from 2 to 6 digits. To define the length of the new ID of the farm animal on your device proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Auto-registration and confirm with OK.
Use the arrow keys △ ▽ to select Assignment animal ID.
Use the arrow keys ◁ ▷ to set the digit of the new ID of the working animal when creating.

Right offset

Here you define whether an offset is also taken into account when deriving a barn number from the transponder number. Without offset the last 2-6 digits of the transponder number will be used as stable number, with an offset of 1 the rightmost digit will be discarded, with an offset of 2 the two rightmost digits, and so on.

Hint

To graphically illustrate the effect of the set parameters, a fifteen-digit transponder number is displayed below the line for setting the offset. A green frame indicates the stall number that would be derived from the transponder number with the current settings. A change of the setting values “Length” and “Offset” leads directly to an update of the derived leads immediately to an update of the derived barn number.

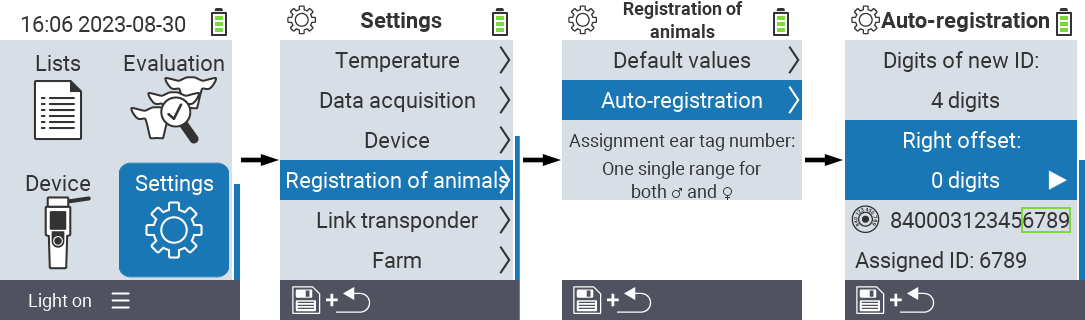

To set the offset to the right of the animal on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Auto-registration and confirm with OK.
Use the arrow keys △ ▽ to select Right offset.
Use the arrow keys ◁ ▷ to set the right offset area of the working animal when creating.

Save the settings and return to the top menu Settings by pressing the F1 key Save and return .

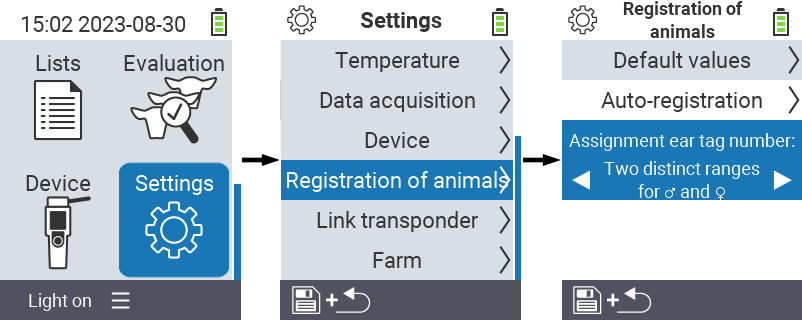

Assignment ear tag number

Here you define whether one or two number ranges are used when assigning the ear tag number in the course of the manual re-registration of animals. To define the assignment of the ear tag number of the farm animal on your device, proceed as follows:

In the main screen of your VitalControl device, select the menu item Settings and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Registration of animals. Confirm with OK.
Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Default values, Auto-registration and Assignment ear tag number. Select Assignment ear tag number and confirm with OK.
Use the arrow keys ◁ ▷ to assign the ear tag number the working animal when creating.

Save the settings and return to the top menu Registration of animals by pressing the F1 key Save and return .

Save the settings and return to the top menu Settings by pressing the F1 key Save and return .
