Date & Time setting

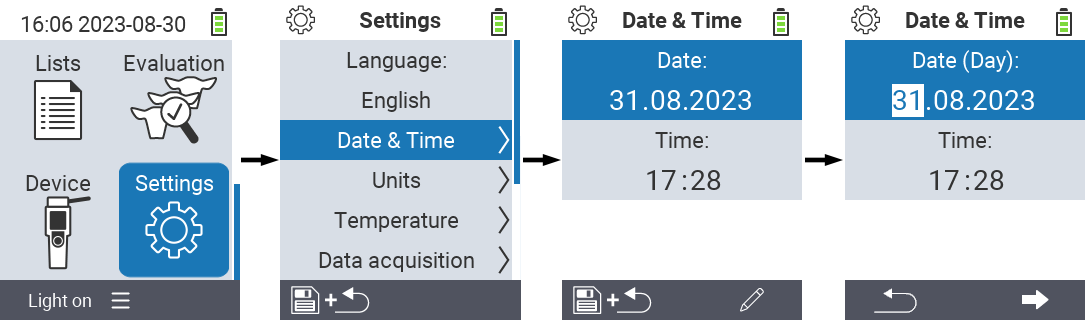

To set the date

To set the date on your device, follow these steps:

1. On the main screen of your VitalControl device, select the menu option Settings and press the OK button.

2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Date & Time. Confirm with OK.

3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the two setting fields for Date and Time. Select the Date settings field.

4. Press OK key or use F3 key to switch to setting mode. Now you can set the day using the arrow keys △ ▽. The button F3 🡆 takes you to the month setting. Alternatively, you can confirm with OK. Use the arrow keys △ ▽ here as well. Click F3 🡆 again to go to year setting. Now use the arrow keys △ ▽ for adjustment of year. Confirm with OK as soon as the date is set correctly.

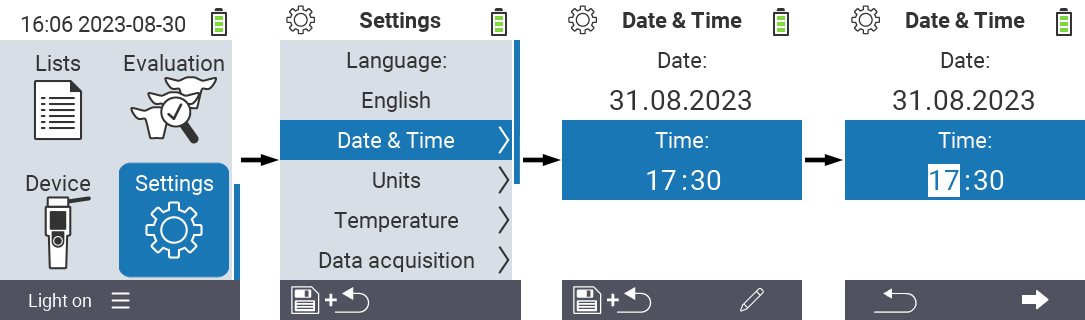

To set the time

To set the time on your device, follow these steps:

1. On the main screen of your VitalControl device, select the menu option Settings and press the OK button.

2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Date & Time. Confirm with OK.

3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the two setting fields for Date and Time. Select the Date settings field.

4. Press OK key or use F3 key to switch to setting mode. Now you can set the day using the arrow keys △ ▽. The button F3 🡆 takes you to the minute setting. Alternatively, you can confirm with OK. Now use the arrow keys △ ▽ for adjustment of minutes. Once the time is set correctly, confirm with OK.



Save the settings and return to the top menu Settings by pressing the F1 key   .
