Device settings

Here you can adjust various device settings.
Categories:
Tags:

Shutdown device after

To set the period of non-activity until the device is switched off, proceed as follows.

  1. In the main screen of your VitalControl device, select the menu item Settings Settings and press the OK button.

  2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Device. Confirm with OK.

  3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Shutdown device after, Start-up screen , Demonstration mode, Display brightness, Vibration on keypress and Resource monitor. Select Shutdown device after.

  4. Use the arrow keys ◁ ▷ to set the desired duration in minutes.

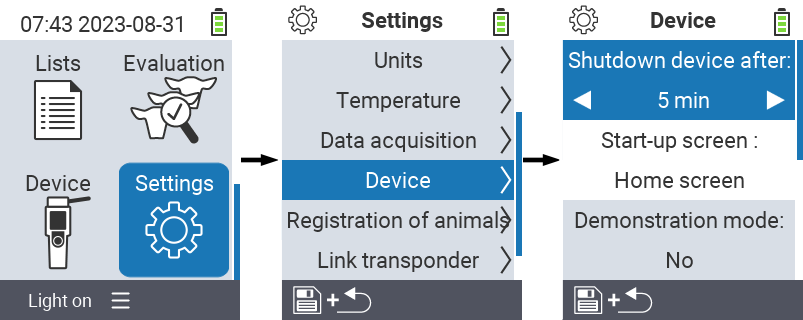

    VitalControl: menu settings Shutdown device after

Start-up screen

To set the start up screen proceed as follows.

  1. In the main screen of your VitalControl device, select the menu item Settings Settings and press the OK button.

  2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Device. Confirm with OK.

  3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Shutdown device after, Start-up screen , Demonstration mode, Display brightness, Vibration on keypress and Resource monitor. Select Start-up screen .

  4. Use the arrow keys ◁ ▷ to set the desired start-up screen.

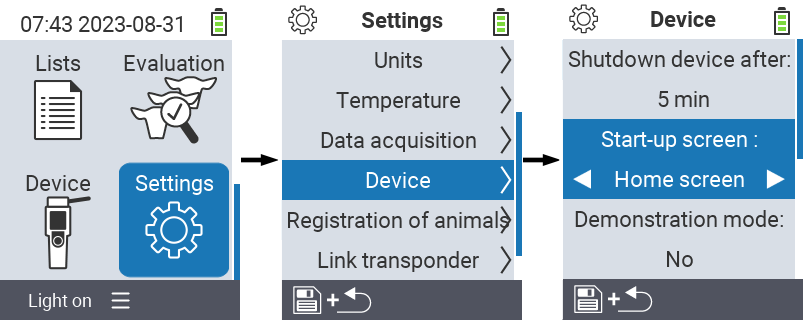

    VitalControl: menu settings Start-up screen

Demonstration mode

If the presentation mode is selected, the device simulates the temperature measurements and displays a randomly generated temperature as a measured value. This mode is used for device demonstration if no animals are available for a measurement. To deactivate or activate the presentation mode of the device, proceed as follows:

  1. In the main screen of your VitalControl device, select the menu item Settings Settings and press the OK button.

  2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Device. Confirm with OK.

  3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Shutdown device after, Start-up screen , Demonstration mode, Display brightness, Vibration on keypress and Resource monitor. Select Demonstration mode.

  4. Use the arrow keys ◁ ▷ to activate or deactivate the presentation mode.

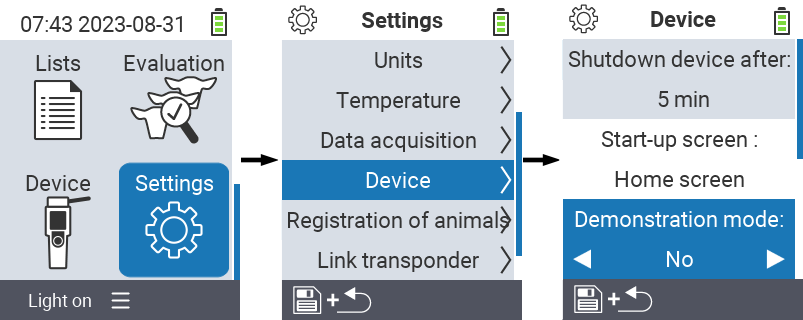

    VitalControl: menu settings Demonstration mode

Display brightness

To set the display brightness proceed as follows.

  1. In the main screen of your VitalControl device, select the menu item Settings Settings and press the OK button.

  2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Device. Confirm with OK.

  3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Shutdown device after, Start-up screen , Demonstration mode, Display brightness, Vibration on keypress and Resource monitor. Select Display brightness.

  4. Use the arrow keys ◁ ▷ to set the display brightness.

    VitalControl: menu settings Display brightness

Vibration on keypress

To deactivate or activate the vibration on keypress of the device, proceed as follows:

  1. In the main screen of your VitalControl device, select the menu item Settings Settings and press the OK button.

  2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Device. Confirm with OK.

  3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Shutdown device after, Start-up screen , Demonstration mode, Display brightness, Vibration on keypress and Resource monitor. Select Vibration on keypress.

  4. Use the arrow keys ◁ ▷ to activate or deactivate the vibration on keypress.

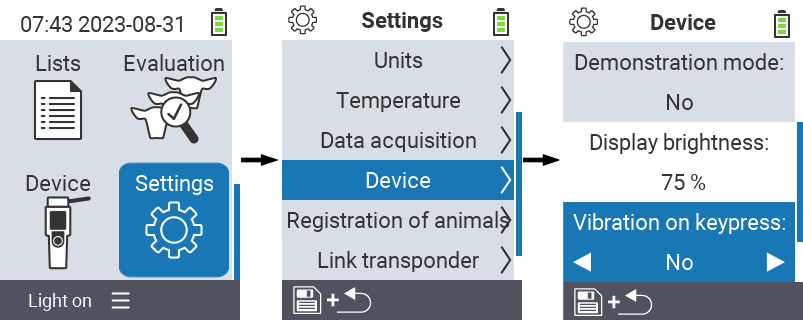

    VitalControl: menu settings Display brightness

Resource monitor

To deactivate or activate the vibration resource monitor of the device, proceed as follows:

  1. In the main screen of your VitalControl device, select the menu item Settings Settings and press the OK button.

  2. A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Device. Confirm with OK.

  3. Another submenu opens in which you can use the arrow keys △ ▽ to switch between the setting fields for Shutdown device after, Start-up screen , Demonstration mode, Display brightness, Vibration on keypress and Resource monitor. Select Resource monitor.

  4. Use the arrow keys ◁ ▷ to activate or deactivate the resource monitor.

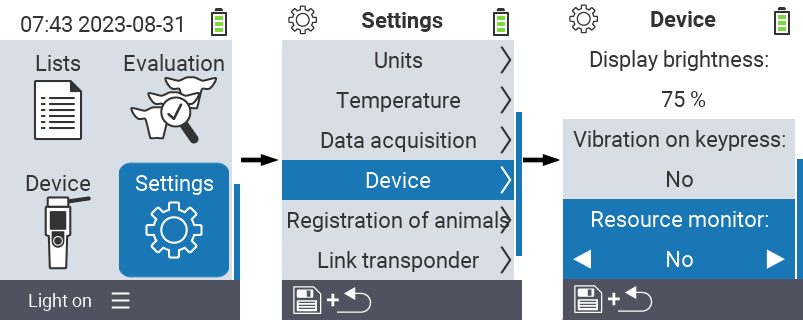

    VitalControl: Menu settings Resource monitor

Save the settings and return to the top menu Settings Settings by pressing the F1 key  Save and return .
