Link transponder

Set the assignment of the transponder on your VitalControl device.

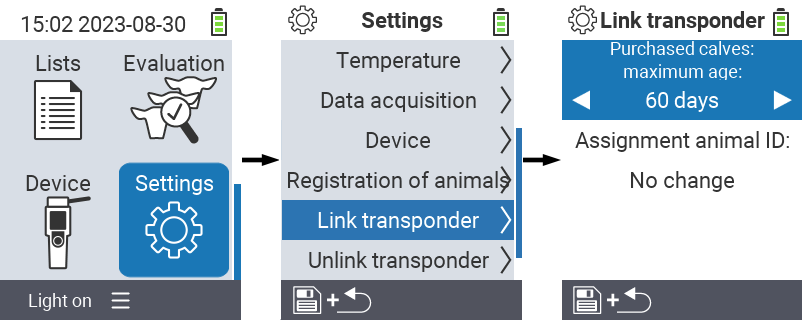

Set maximum age of purchased calves

To set the Purchased calves: maximum age on your device proceed as follows.

Select the menu item Settings in the main screen of your VitalControl device and press the OK button.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Link transponder. Confirm with OK.
The setting field Purchased calves: maximum age is automatically selected. Use the arrow keys ◁ ▷ to set the maximum age.

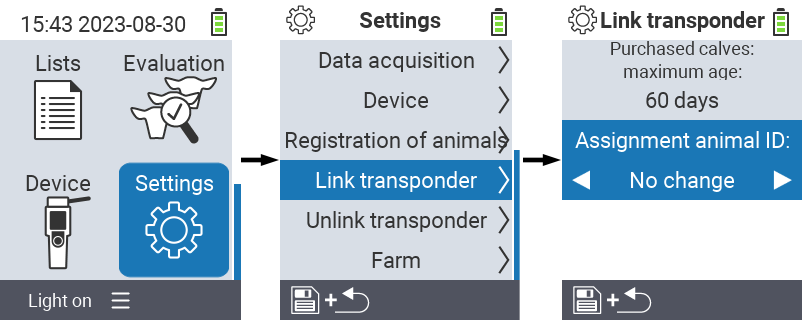

To set the Assignment animal ID on your device, proceed as follows.

Select the menu item Settings in the main screen of your VitalControl device and press the OK key.
A submenu opens in which various settings are displayed. Use the arrow keys △ ▽ to select Link transponder. Confirm with OK.
Use the arrow keys △ ▽ to select the setting field Assignment animal ID.
Use the arrow keys ◁ ▷ to set the assignment of the animal numbers. If you select the setting Derivation from transponder number, you will get the options to set the Digits of new ID and Right offset. Use the arrow keys △ ▽ to select the appropriate range and the arrow keys ◁ ▷ to select the desired setting.
Select the option Consecutive or Derivation from transponder number and proceed as described in page Assignment animal ID.

Save the settings and return to the top menu Settings by pressing the F1 key Save and return .
